Compactor HMI
Januar 28, 2020
Web Apps
Oktober 10, 2017
XENON
Process visualisation and control for asphalt and concrete mixing plants.

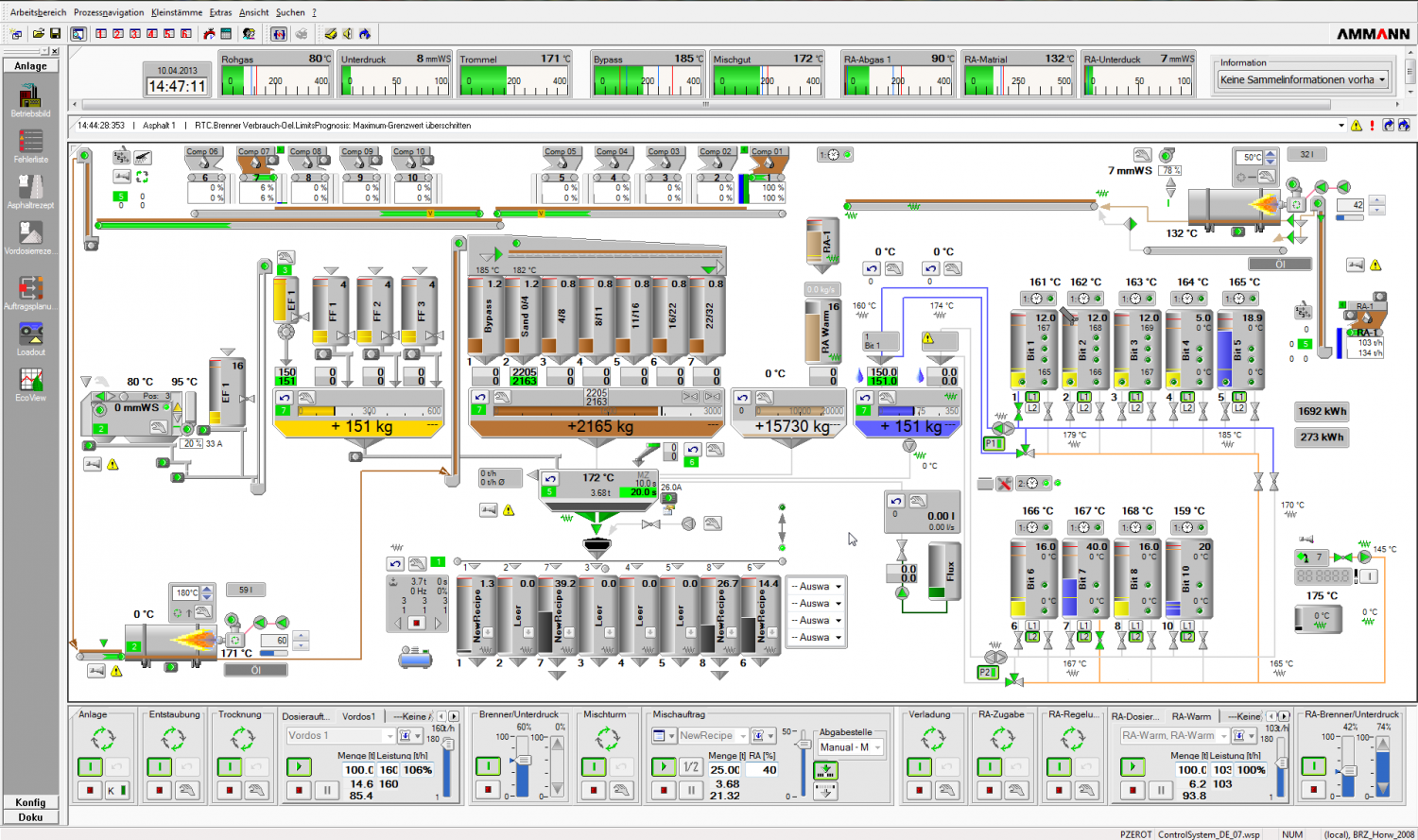

The already highly regarded "as1" controller sets a standard on the market for reliability in highly complex automation controls. However, the user interface implemented with C++ is getting on in years and support from platform providers is uncertain in the medium term. Ammann wants to take on the role of technology leader and, after intensive evaluation, is relying on a web-based interface implemented with modern frameworks and vector graphics.
Existing software - The existing UI has a very high information density, which has a negative impact on the learnability of the system. In addition, several other usability-related problems were identified that can be avoided with a new concept.

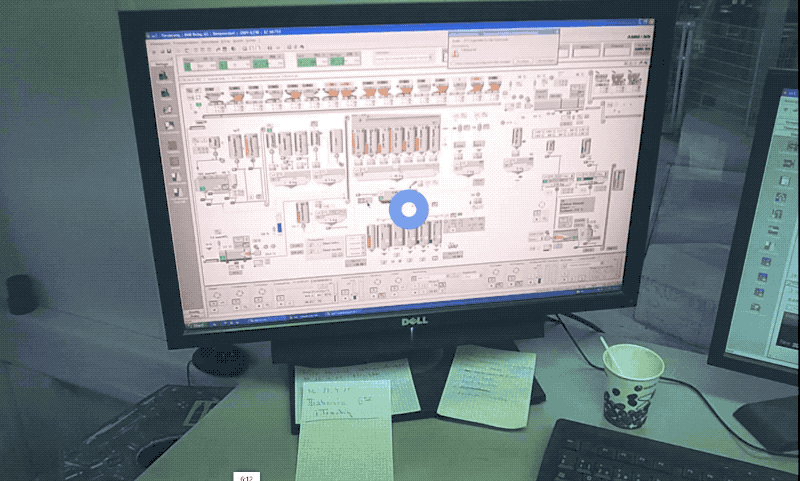

User Research - Extensive user research in Switzerland, Germany and Austria

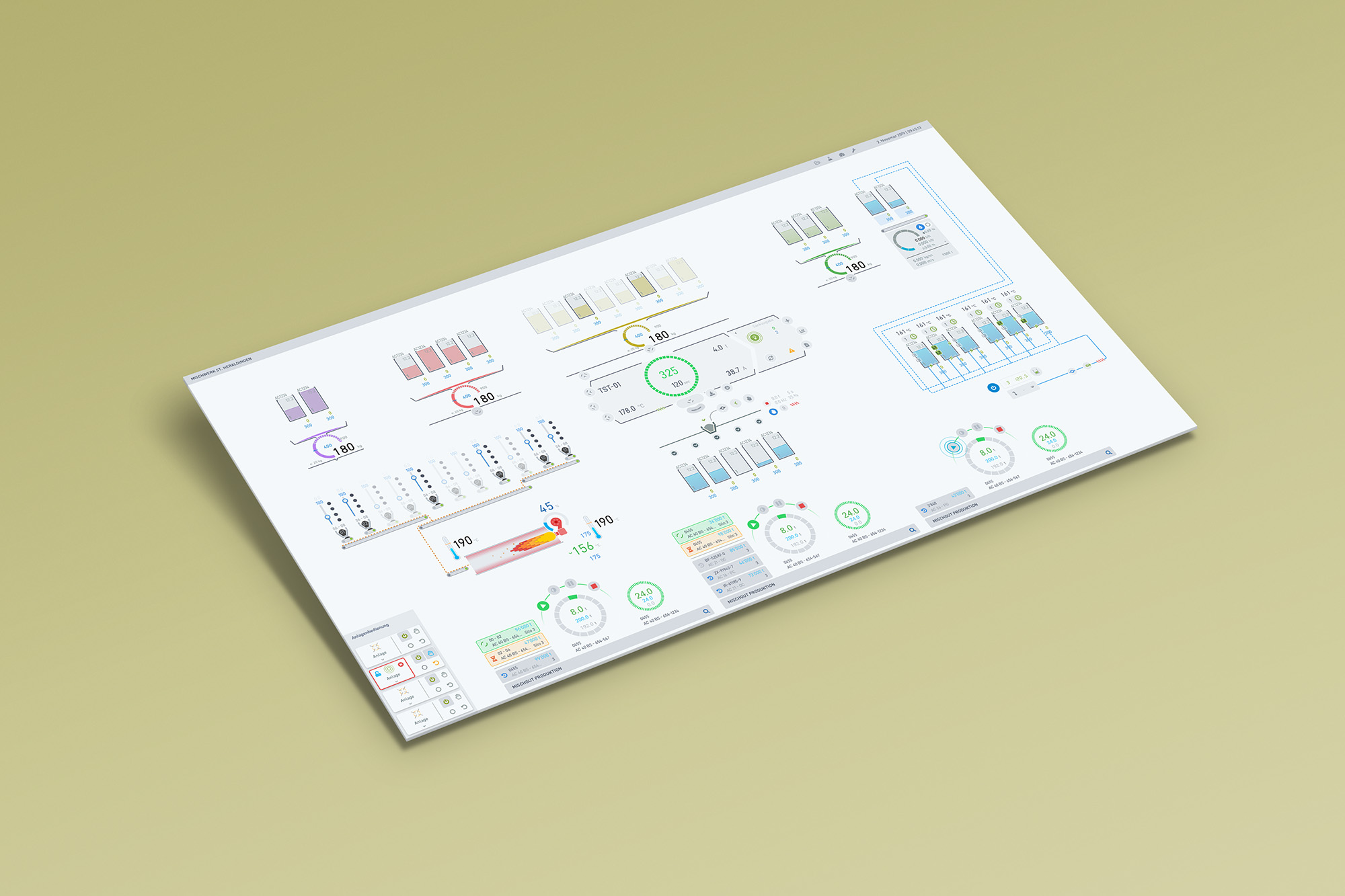

Development - Focus on reducing information density and creating dynamic information hierarchies
Showcase Video - I was given the opportunity to create a project preview for the BAUMA 2016 trade fair in Munich. In an informative trailer, the existing partial concepts were animated using After Effects and shown as a teaser at the trade fair.
Methods
User Research
Contextual Inquiries
Surveys
Wireframes
Visual Design
Motion Design
Prototyping
SVG Animations
Tools
Adobe Illustrator
Adobe After Effects
Sketch
Principle
JSFiddle
